Dual Window Coupler 1550nm Fiber Optic Splitter Singlemode
1x2 1310/1550nm Singlemode Dual Window Coupler Splitter 1:99 Split 0.9mm
Description
1x2 1310/1550nm Singlemode Dual Window Couplers manufactured by ANC International Co., Limited are Single Mode Splitters with a defined split ratio from one input fiber to 2 output fibers. This dual window coupler is a 1x2, with 1 input and 2 output fibers with a 1: 99 split ratio and 900µm loose tube fiber. Dual Window Couplers are available with 900µm loose tube single-mode fiber or 250µm bare fiber and are terminated or unterminated as required. Unconnectorized SM Splitters/Couplers come with no connectors for easy splicing or connectorization. Connectorized Dual Window Couplers are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, ST/UPC, etc. Single mode Dual Window Couplers are manufactured using Corning SMF-28® Fiber and available in various coupling ratios such as 50/50, 40/60, 30/70, 20/80, 10/90, 05/95 & 1/99 with operating wavelengths 1270, 130, 1350, 1400, 1480, 1550 & 1630. Other coupling ratio & wavelength options are available upon request.
Specification
Low insertion loss
Low excess loss
Excellent uniformity
Low PDL
High directivity
Protective metal sleeve around the split fibers
900µm loose tube fiber for easy stripping, splicing, or terminating
Without connector or with connector optional
Available split ratios: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1. In 1x2 or 2x2 splits
Features
RoHS Compliant
Environmentally stable and reliable
Applications
CATV
Telecommunication
FTTH
Local area networks
Subscriber loop
Test equipment
Technical Data
| Specifications |
| Parameters | Grade P | Grade A |
| Port | 1x2 or 2x2 |
| Operating wavelength (nm) | 1310, 1490 and 1550; Others on Request |
| Operating bandwidth (nm) | 1310 ± 40,1490 ± 10 and 1550 ±40 |
| Insertion loss (dB) | 50/50 | ≤3.6/3.6 | ≤3.8/3.8 |
| 40/60 | ≤4.7/2.7 | ≤5.0/3.0 |
| 30/70 | ≤6.0/1.9 | ≤6.3/2.4 |
| 20/80 | ≤7.9/1.3 | ≤8.4/1.5 |
| 10/90 | ≤11.2/0.8 | ≤11.6/1.1 |
| 5/95 | ≤14.5/0.5 | ≤15.2/0.8 |
| 2/98 | ≤18.7/0.4 | ≤19.4/0.7 |
| 1/99 | ≤22.4/0.3 | ≤23.5/0.5 |
| PDL (dB) | ≤0.15 | ≤0.20 |
| Directivity (dB) | ≥55 |
| Fiber Type | SMF-28e Compatible; Others on Request |
| Operating temperature (℃) | -40 ~ +85 |
| Package (mm) | 250μm Bare Fiber: Steel Tube, Φ3 × 54
0.9 mm Loose Tube: Steel Tube, Φ3 × 54
2 mm or 3 mm Cable: ABS Box, 90 × 20 × 10 |
Notes: All the data are tested without connectors. Insertion loss of one pair of connector is less than 0.3 dB.
Other specifications can be made on customer request.
Order Information
| Type | Port | Grade | Wavelength | Fiber Type | Pigtail | Package | Fiber Length | Connector |
| FBT Coupler | 1x2 | P | 1310/1490/1550 | SMF-28e | 250um | Φ3 × 54 | 0.5m | none |
| 2x2 | A | custom | custom | 0.9mm | 90×20×10 | 1m | LC/UPC |
| custom | | | | 2mm | custom | custom | LC/APC |
| | 3mm | | | SC/UPC |
| custom | SC/APC |
| | FC/UPC |
| custom |

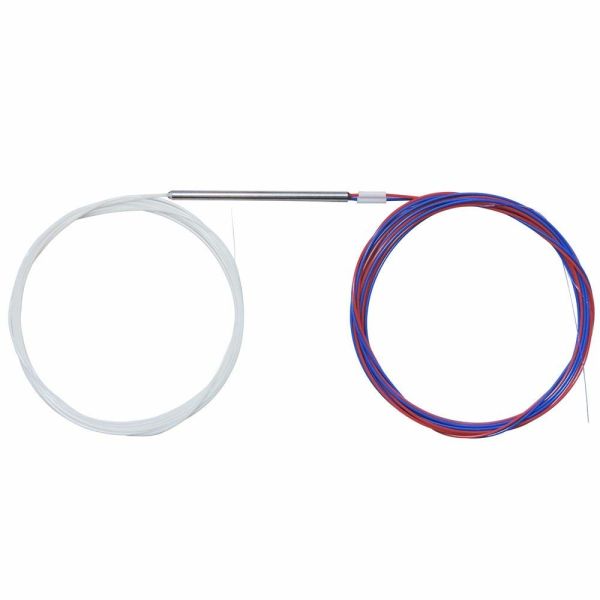

Product Picture
